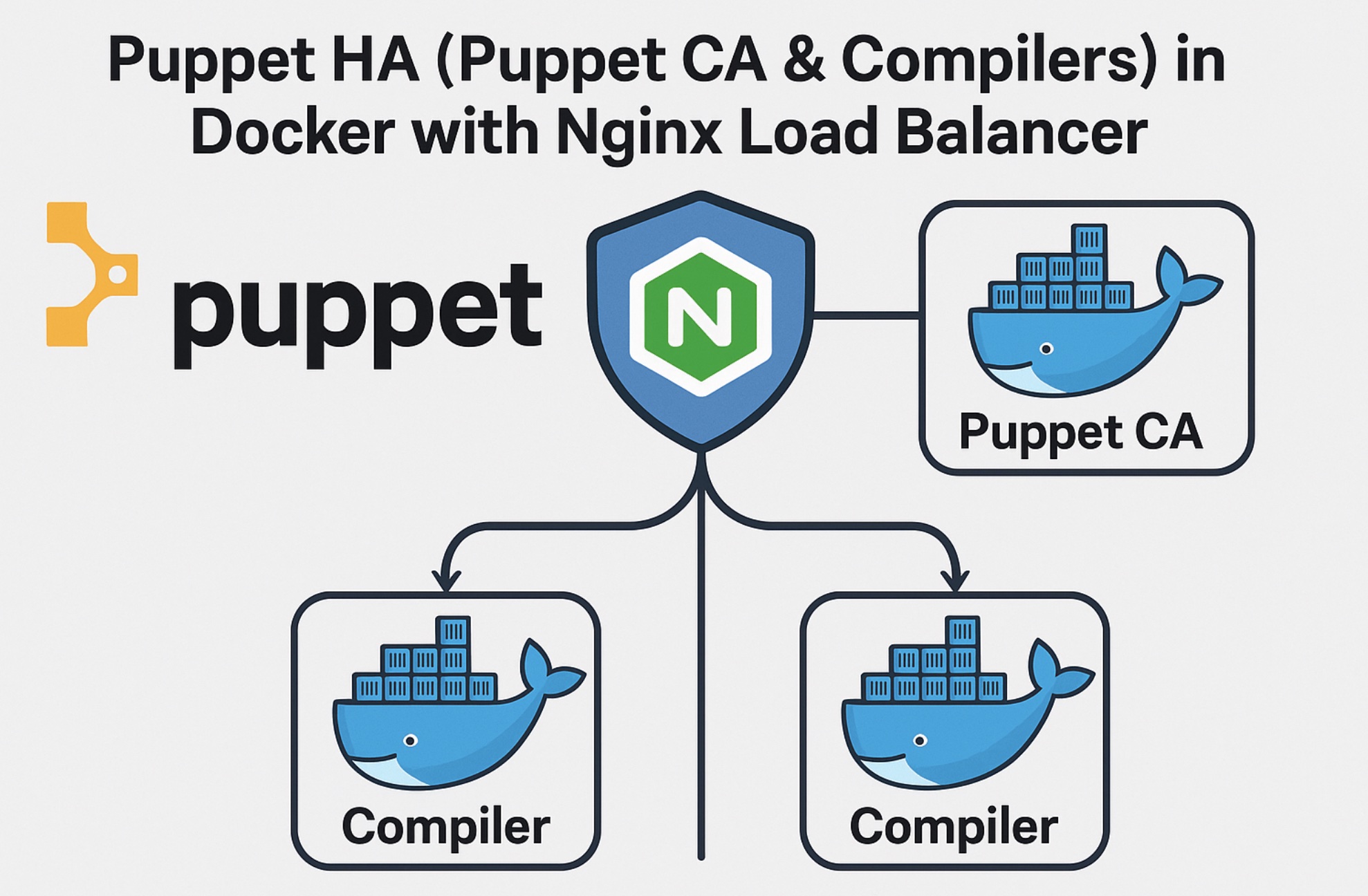

Puppet HA (puppet ca & compilers) in Docker with Nginx Load Balancer

Introduction

If you’re starting with Puppet and Docker, you might wonder: Should Puppet manage Docker, or run Puppet inside Docker containers? The answer is—you can do both!

Using Puppet in Docker lets you easily package and run Puppet tools like Puppet Server and PuppetDB as containers. This setup is great for quickly building and testing environments, which you can then apply to production.

In this post, I’ll show you how to create containerized Puppet environments to simplify your development and deployment.

Why Use Puppet with Docker?

• Running Puppet within Docker provides a convenient method to deploy Puppet and related tools like Puppet Server and PuppetDB.
• By packaging these components into Docker containers, we can:
• Enable the deployment of a Puppet environment (such as Puppet Server, PuppetDB, and PostgreSQL) on any system capable of running Linux containers.
• Facilitate the operation and scaling of the Puppet infrastructure on container orchestration platforms like Kubernetes, Rancher, DC/OS, or Docker Swarm.
• Offer an excellent local development setup for Puppet using Docker, simplifying the process of testing new Puppet versions or developing applications that interact with the PuppetDB API.

1. Prerequisites

• Docker & Docker Compose installed
• Basic familiarity with Git, Puppet, and Docker

2. Clone the Puppet HA Sample Repo

You can find the official aricle based on that structure in How to Run Puppet in Docker. The voxpupuli/crafty repository has good examples with diffrent type of use cases. We will use the repo but there are manual steps that We need to follow.

git clone https://github.com/voxpupuli/crafty.git
cd puppet/ha

3. Analysis of The Repo

We will focus puppet ha subfolder, It includes everything what We need to use.

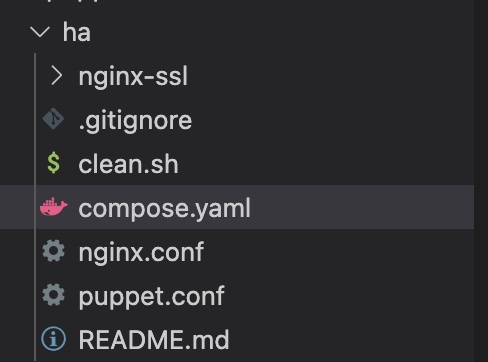

guneycansanli ~/Development/crafty/puppet/ha [main] $ tree
.
├── clean.sh
├── compose.yaml
├── nginx-ssl
├── nginx.conf
├── puppet.conf
└── README.md

Puppet Certificate Authority (CA)

• Image: ghcr.io/voxpupuli/puppetserver:8.7.0-latest
• Role: Acts as the Certificate Authority for signing agent certificates.
• Key Environment Variables:
  • PUPPETSERVER_HOSTNAME: Sets the server’s hostname in SSL certificates.
  • USE_PUPPETDB: Disables PuppetDB integration (false).
  • CA_ENABLED: Enables the internal CA (true).
  • CA_ALLOW_SUBJECT_ALT_NAMES: Allows certificates with Subject Alternative Names (true).

Note: In my tests I had issues with mismatch hostname in CA server

root@puppet-ca:/# openssl s_client -connect puppet-ca:8140 -showcerts </dev/null 2>/dev/null | openssl x509 -noout -text | grep -A2 "Subject Alternative Name"
            X509v3 Subject Alternative Name:
                DNS:puppet, DNS:puppet-ca.local
    Signature Algorithm: sha256WithRSAEncryption

root@puppet-ca:/# puppetserver ca clean --certname puppet-ca --config /etc/puppetlabs/puppet/puppet.conf
Fatal error when running action 'clean'
  Error: Failed connecting to https://puppet-ca:8140/puppet-ca/v1/certificate_status/
  Root cause: SSL_connect returned=1 errno=0 peeraddr=127.0.0.1:8140 state=error: certificate verify failed (hostname mismatch)

This means that Puppet is trying to connect to https://puppet-ca:8140, but the certificate does not include puppet-ca as a valid hostname in its SAN. We can maybe edit out puppet.conf to fix that or We can add CERTNAME: puppet-ca and DNS_ALT_NAMES: puppet-ca to our CA server envrionment variables.

root@puppet-ca:/# openssl x509 -in /etc/puppetlabs/puppet/ssl/certs/puppet-ca.pem -noout -text | grep -A2 "Subject Alternative Name"
            X509v3 Subject Alternative Name:
                DNS:puppet-ca, DNS:puppet-ca
    Signature Algorithm: sha256WithRSAEncryption

Above output verify DNS Altname is puppet-ca

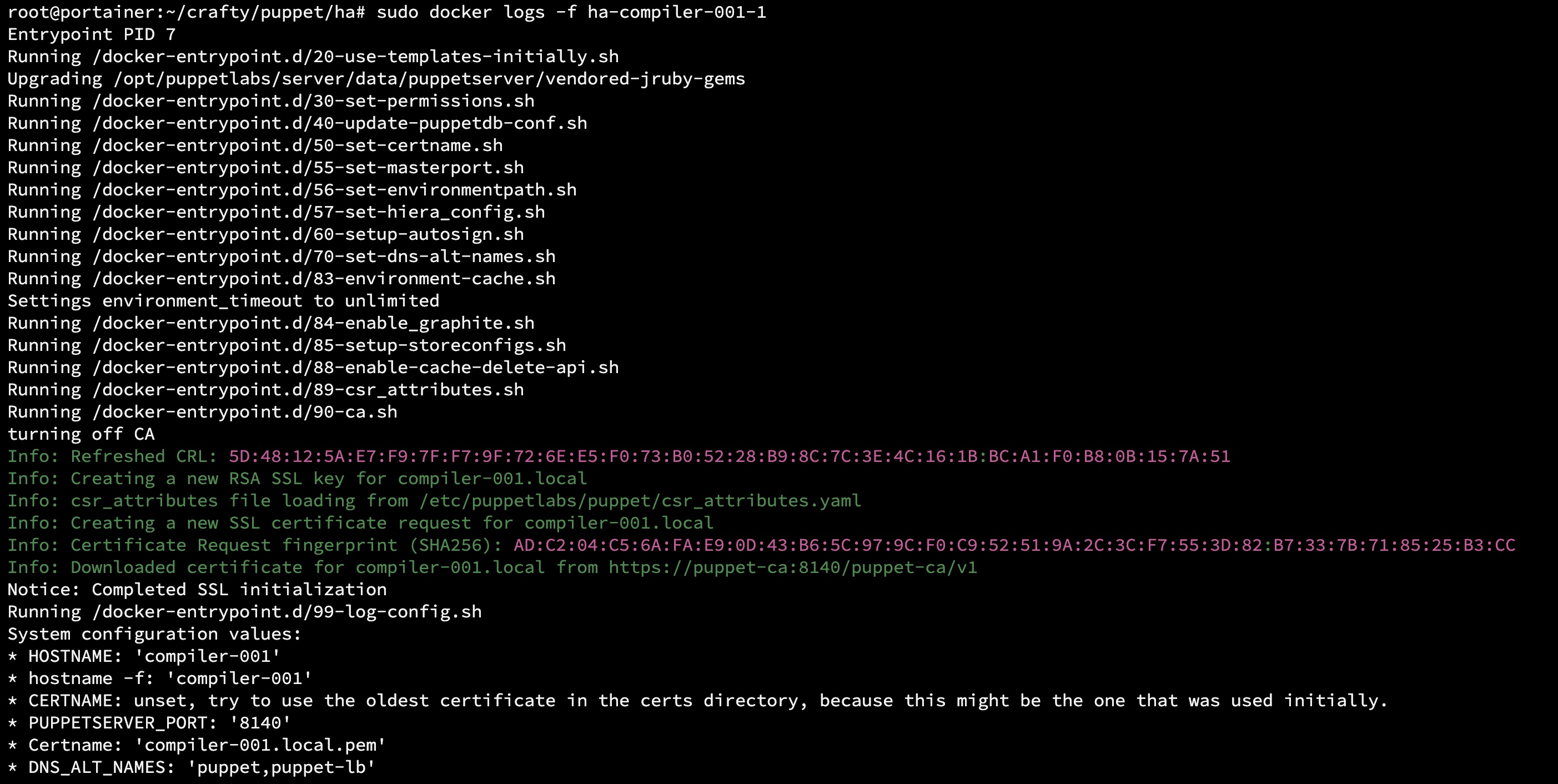

Puppet Compilers (compiler-001, compiler-002, compiler-003)

• Image: ghcr.io/voxpupuli/puppetserver:8.7.0-latest
• Role: Compile and serve Puppet code to agents.
• Key Environment Variables:
  • PUPPETSERVER_HOSTNAME: Unique hostname for each compiler.
  • USE_PUPPETDB: Disables PuppetDB integration (false).
  • CA_ENABLED: Disables internal CA (false).
  • CA_HOSTNAME: Specifies the CA’s hostname.
  • DNS_ALT_NAMES: Sets additional DNS names for SSL certificates.

Puppet Load Balancer (puppet-lb)

• Image: nginx:1.29.0
• Role: Load balances traffic to Puppet compilers.
• Configuration:
  • Exposes port 8140 for Puppet traffic.
  • Mounts custom nginx.conf and SSL certificates for secure communication.

Testing Service

• Image: ghcr.io/betadots/pdc:latest
• Role: Provides a containerized environment for testing Puppet code.
• Configuration:
  • Mounts puppet.conf for agent configuration.
  • Mounts agent-ssl for SSL certificates.

Summary Table

3. Start the Puppet compose

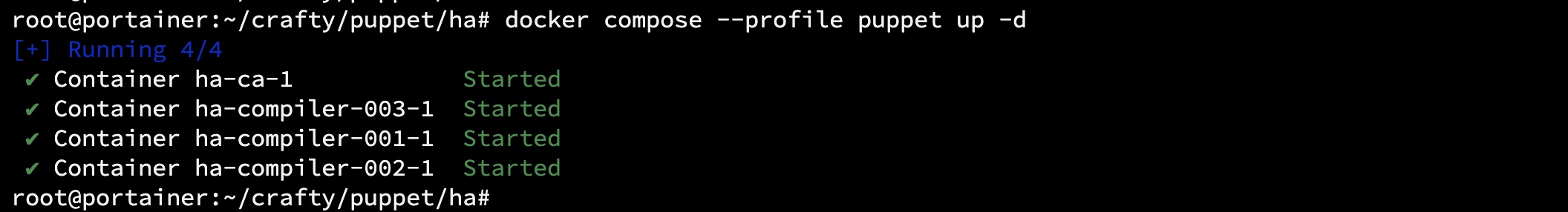

docker compose --profile puppet up -d

# check if compose is ready

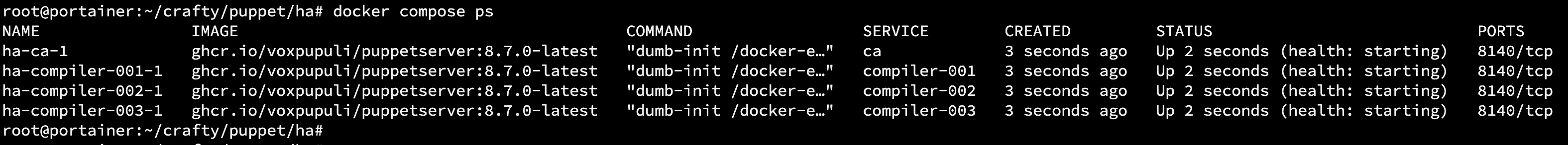

docker compose ps

Generate the certificate for the LB

Once this compose file is up and running execute create CA and also using SSL & CA keys fro nginx:

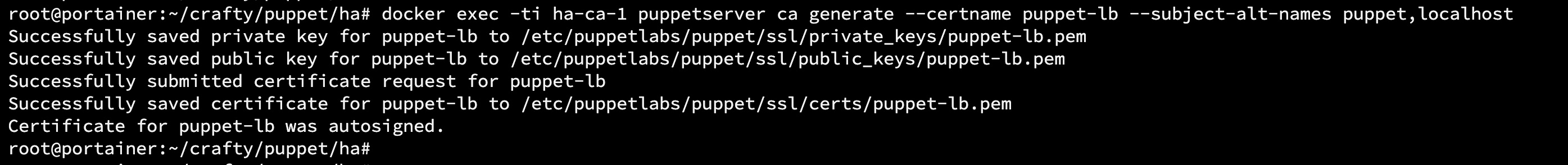

docker exec -ti ha-ca-1 puppetserver ca generate --certname puppet-lb --subject-alt-names puppet,localhost

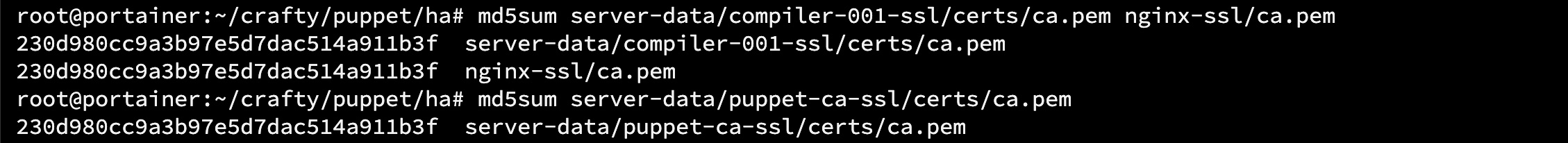

cp server-data/puppet-ca-ssl/certs/ca.pem               nginx-ssl/ca.pem
cp server-data/puppet-ca-ssl/certs/puppet-lb.pem        nginx-ssl/cert_puppet.pem
cp server-data/puppet-ca-ssl/private_keys/puppet-lb.pem nginx-ssl/priv_puppet.pem

Start the LB compose

docker compose --profile lb up -d

Test an agent

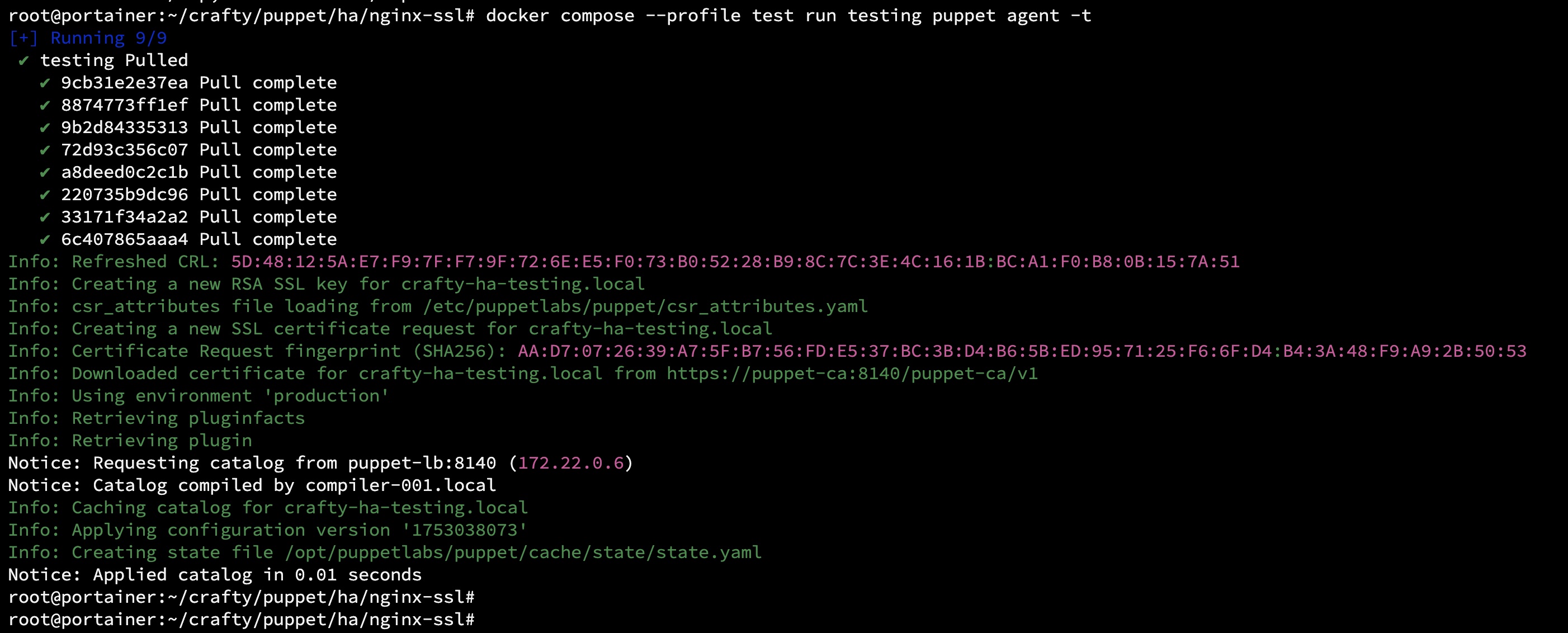

docker compose --profile test run testing puppet agent -t

Clean up

./clean.sh

Conclusion

Integrating Puppet with Docker streamlines both development and deployment processes. It empowers teams to work faster, test more thoroughly, and adapt their infrastructure with minimal overhead. Whether for experimenting with configurations or scaling across platforms, this approach provides a reliable, reproducible, and highly flexible foundation for modern infrastructure management.

Thanks for reading!

—
